Description

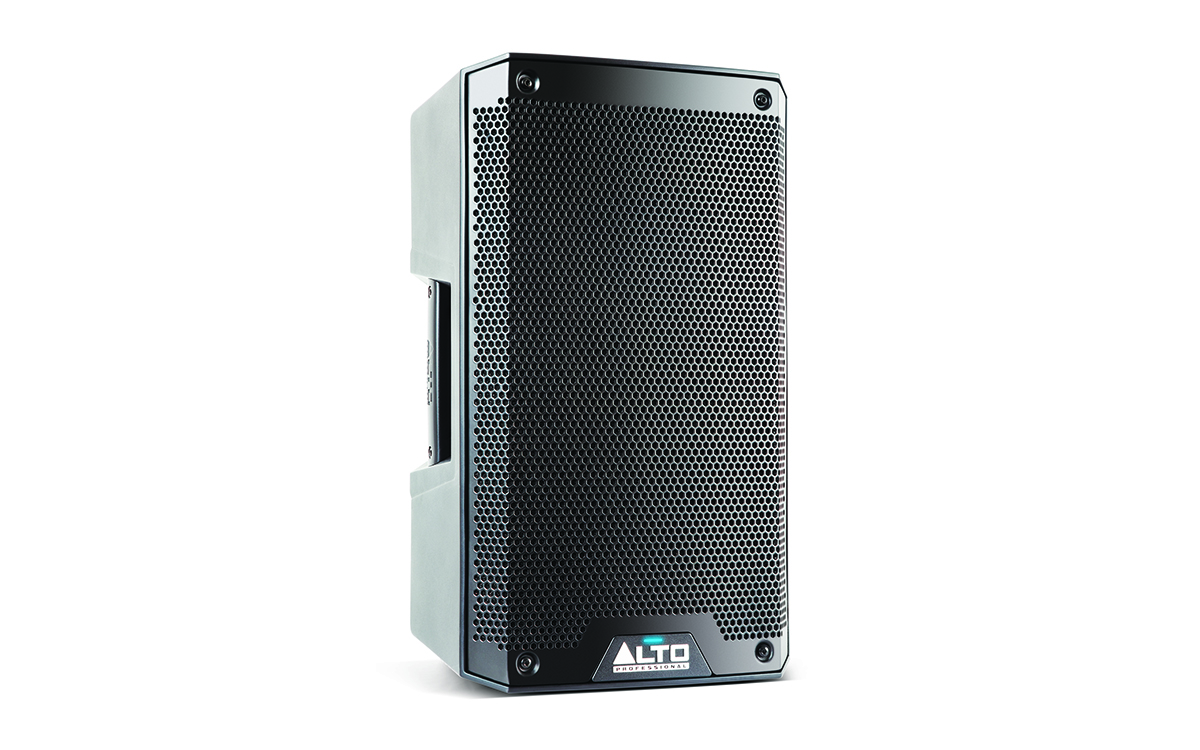

There are four models in the new TS3 range: The TS308, TS310, TS312 and TS315, with 8-10-12- and 15-inch woofers respectively. The range shares a new 2000-watt peak (1000-watt continuous) amplifier, a significant advance over the 1100-watt peak (550-watt continuous) amplifiers in the TS2.
The four models boast all-new low-frequency drivers, designed to play louder and handle more power than their already-impressive predecessors, the wildly-successful TS2 Series. They also have a new horn-loaded high-frequency driver. This impressive transducer has a brand-new heat sink design that provides exceptional heat dissipation for impressive power-handling, even at all-night-long concert levels. Because these new drivers can safely handle the additional power, the TS3�s take full advantage of the increased wattage and will play at higher SPLs with lower distortion.
We�ve even made the TS3�s easier to use, with an updated control panel and clearer control indications and detents that make for a faster, more precise setup.
2000 watts of bi-amplified power, newly-designed drivers and easier, more satisfying controls and setup�the new TS3 range doesn�t merely meet your requirements. It makes you re-think what�s possible.
Features:
- 2000 W peak (1300 LF + 700 HF) 1000 W continuous RMS (650 LF + 350 HF)
- 12-inch (305 mm) LF driver, 3-inch (76 mm) high-temperature voice coil
- 1.4-inch (35 mm) neodymium magnet HF driver with precision wave guide
- High quality, lightweight, cabinet design for easy transport, set up and installation
- Pole-mountable, wedge monitor, bracket installation or flown application with integral M10 suspension points
- Integrated 2-channel mixer with dual XLR 1/4-inch combo mic/line inputs, independent level controls, XLR Link output, Contour EQ switch and Ground-Lift switch
- Custom-engineered high-efficiency class D amplifiers with passive cooling design � no fan means the speaker runs cleaner, quieter and has greater long-term reliability
- Design Origin: Designed and tuned in the USA
Specifications:
- Output Power: 2000 W peak (1300 LF + 700 HF) 1000 W continuous RMS (650 LF + 350 HF)
- LF Driver: 12-inch (305 mm) LF driver, 3-inch (76 mm) high-temperature voice coil
- HF Driver: 1.4-inch (35 mm) neodymium magnet HF driver with precision wave guide
- Crossover: 2 kHz
- Maximum SPL: 131 dB peak, 128 dB continuous (dB SPL @ 1 m)
- Frequency Response: 53 Hz � 20 kHz (+/- 3 dB)
- Frequency Range: 46 Hz � 22 kHz (-10 dB)
- Horn Coverage: 90� H x 60� V nominal
- Equalization: Contour Switch Low and High Frequency +3dB Boost

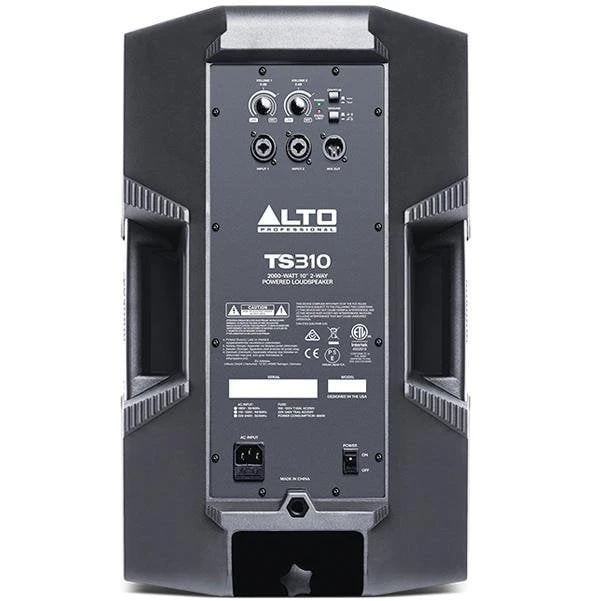

- Connectors: (2) XLR/TRS 1/4� (6.35 mm) combo inputs, (1) XLR link output, (1) IEC power cable input
- Controls: (2) Volume, Power on/off switch, Contour switch, Ground-Lift switch
- Indicators: 2 x Power LED (front and rear), Clip limiter LED
- Protection: Electronic clip, Thermal and transducer overdrive protection
- Power Connection: IEC with Mains Fuse
- AC Voltage Input: 100,110-120,220�240 V, 50/60 Hz
- Enclosure: Trapezoidal, injection-molded, polypropylene enclosure, with perforated steel grille
- Mounting/Installation: 36 mm standard pole mount, Wall or ceiling mount using TSB125 bracket, Flown application with integral M10 suspension points, Wedge monitor
- Dimensions: (H x W x D): 23.8� x 13.9� x 13.8� / 605mm x 354mm x 350mm
- Net Weight: 35.9 lbs. / 16.3 kg.
- Design Origin: Designed and tuned in the USA
