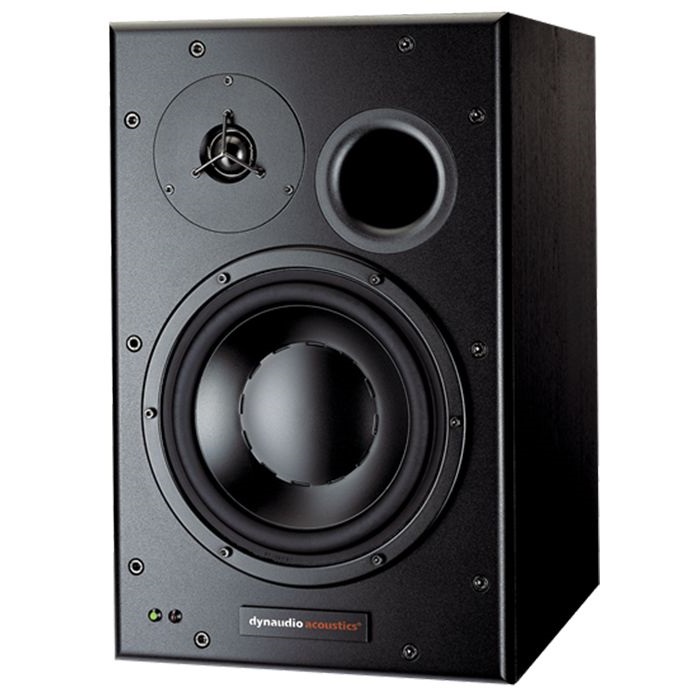

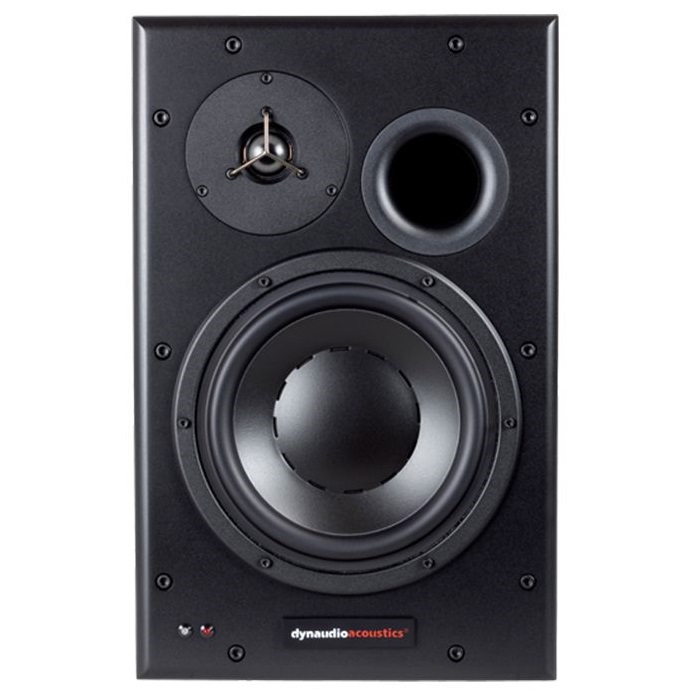

The BM15A is a revolutionary nearfield monitor offering exceptionally high performance. Its full range extended bass response makes it the perfect nearfield monitor, particularly for commercial studios, project studios and post production facilities.
The BM15A is a relatively large 2-way active system comprising of a large 240mm (10?) woofer, a special version of the Dynaudio ESOTEC soft dome tweeter and an electronic phase-aligned crossover, which feeds the build-in dual, high performance discrete MOSFET amplifiers.
The ESOTEC HF driver spells quality and headroom due to a dynamic headroom of 1000W, and the 240mm (10?) bass driver is world-renowned for its 100mm (4?) aluminium alloy voice coil, which outperforms most 300mm (12?) drivers in terms of power output and sheer punch.
The electronics offer complex protection circuitry helping to prevent accidental damage to the drivers, while still providing maximum transient response.
The BM15A monitor is front ported for powerful and extended low frequency response, and the elegant matte cabinet has radius edges on the front baffle to reduce boundary effects and improve the overall sound quality.
100% custom-designed and built drivers, cabinets and electronics
Like all Dynaudio monitors, the BM15A is completely custom-designed and
built to assure a perfect match of components. The drivers are
specifically designed to avoid acoustic and performance problems that
would require extensive manipulation of crossovers to correct. The
cabinets are crafted in Dynaudio�s Denmark facility and minimize
resonance while enhancing bass response. And the BM15A�s crossovers,
protection circuitry and power amplifiers all are optimized for maximum
performance, phase-coherent reproduction and high SPLs.
A 10? woofer that outperforms most 12? drivers
Key to the BM15A is its 10? low frequency driver. Dynaudio molds its
cone of Magnesium Silicate Polymer with their special �flat cone�
geometry for outstanding transient response and minimal breakup. With a
cast aluminum frame, oversized vented magnet and 4? aluminium alloy
voice coil this driver outperforms most 12? speakers in terms of power
output and sheer punch. In fact, the BM15A delivers clean, tight bass
response down to 30Hz.
Master-built bass reflex cabinet
Also built in Dynaudio�s plant, the BM15A enclosure is constructed of
hand-selected premium woods and quality veneers. Its front bass port
contributes to the BM15A�s solid low frequencies. Radius edges on the
front baffle reduce boundary effects and improve the overall sound
quality. And with its elegant matte finish the BM15A looks every bit as
good as it sounds!
Precision electronics for the cleanest possible signal
Thanks to its custom-designed phase-coherent electronic crossover with a
30dB per octave slope the BM15A offers a seamless transition between
drivers. You�ve got plenty of power from the built-in high performance
discrete MOSFET amplifiers, with 200 watts for the low frequency driver
and 100 watts for highs. Precision protection circuitry ensures the
drivers are safe from damage. If you demand ultimate quality in sound
reproduction you don�t want to miss the BM15A!

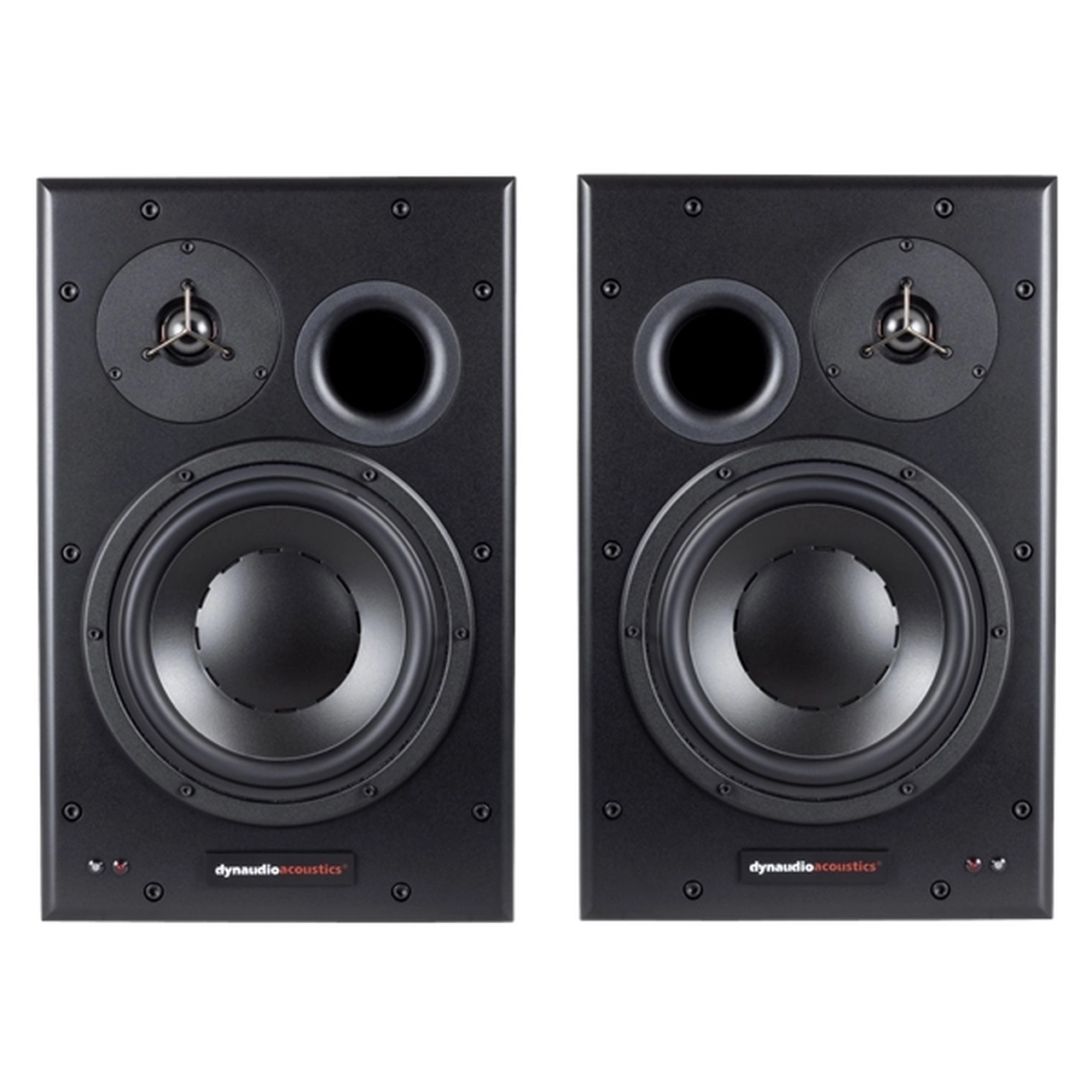

Dynaudio Acoustics BM15A 10" 2-Way Active Nearfield Monitors (Pair) Specifications:
