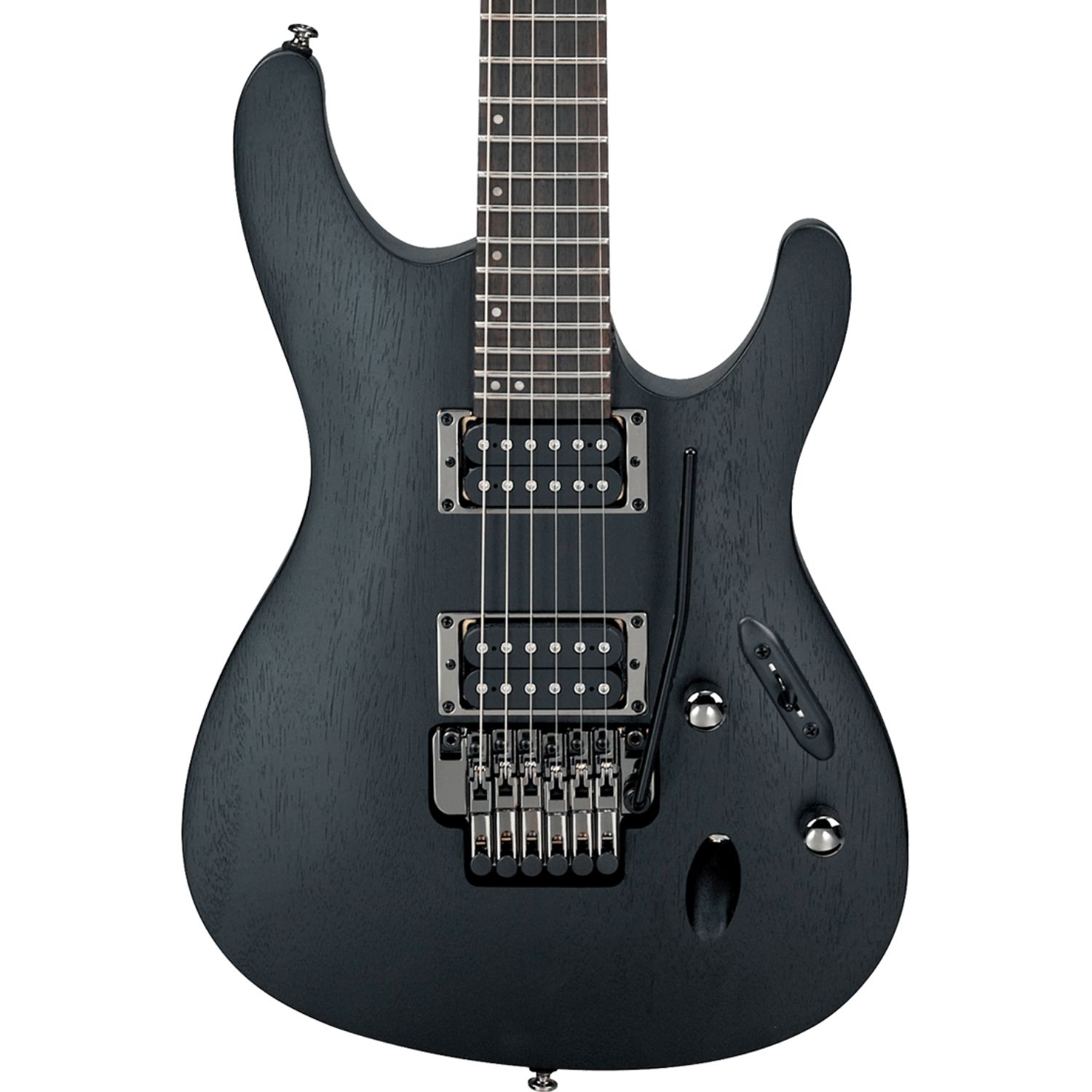

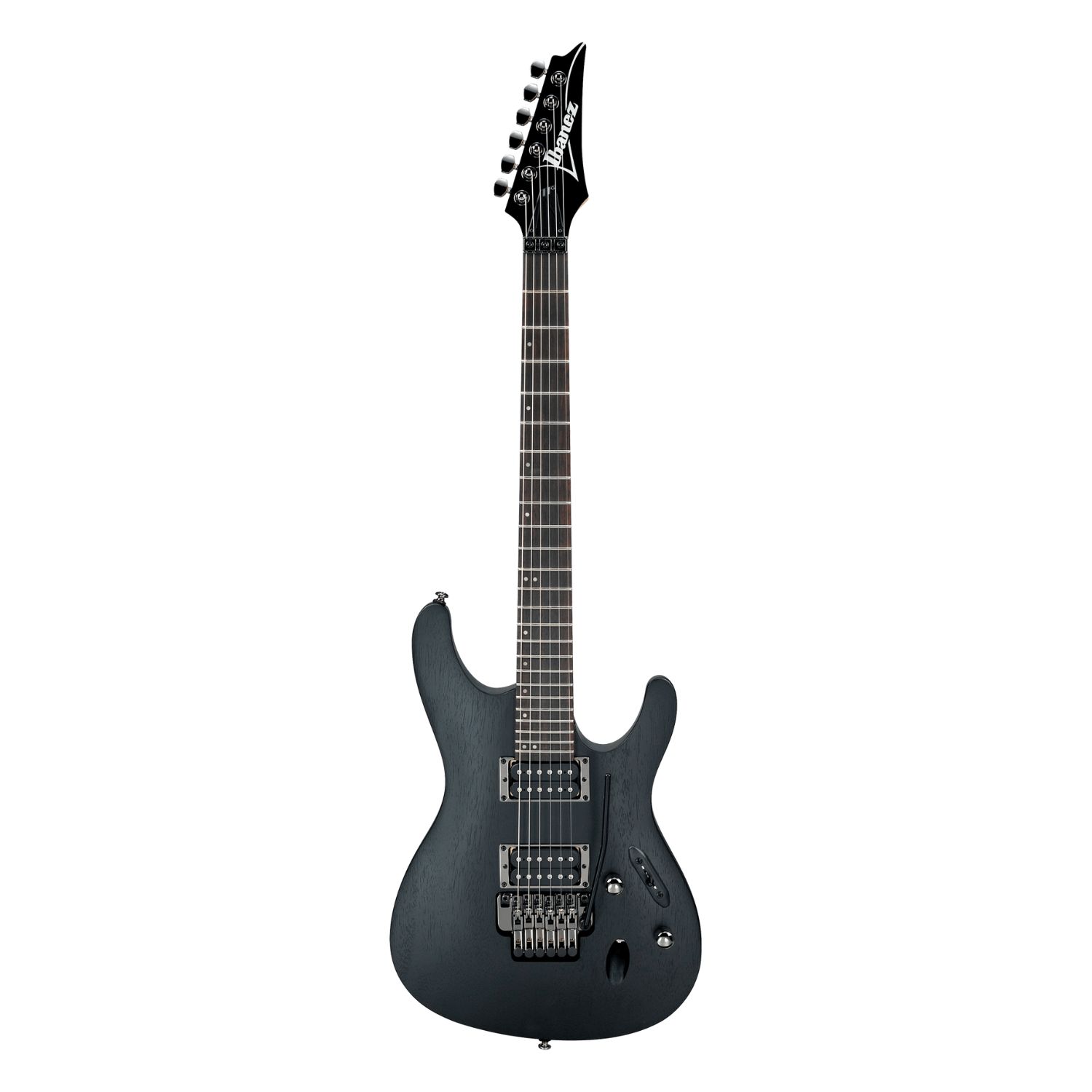

Ibanez S520 Electric Guitar Overview:
The cutting edge of Ibanez design, the S series continues to be a marvel of form and function. Its signature body shape - sculpted, lightweight, and mahogany - is stronger and more musically responsive than guitars weighing twice as much. The S series is still a rock 'n' roll version of a quick, graceful, and potentially lethal weapon.
Features:
Wizard III Maple neck
Ibanez's thin, flat, and fast, yet strong and sturdy, Wizard neck offers unlimited playability for demanding players, and features a two-octave 24-fret fretboard for wide tonal range.
Jatoba Fretboard
Jatoba has a reddish brown color which produces a rich mid range with a crisp high end.
Edge-Zero II tremolo bridge
The Edge Zero II bridge features a lower profile design for comfort, and stud lock function for superior tuning stability.
Quantum pickups
The Quantum pickups provide accelerated bass response for exceptionally fast tracking of high-speed staccato riffing with crushing mid range and precise high-end articulation.
Specifications:
- Neck type: Wizard III 3pc Maple neck
- Body: Mahogany body
- Fretboard: Jatoba fretboard w/Off-set dot inlay
- Fret: Jumbo frets
- Bridge: Edge Zero II bridge
- Neck pickup Quantum (H) neck pickup (Passive/Ceramic)
- Bridge pickup Quantum (H) bridge pickup (Passive/Ceramic)
- Hardware Color: Cosmo black.
- Scale : 648mm/25.5"
- a : Width 43mm at NUT
- b : Width 58mm at 24F
- c : Thickness 19mm at 1F
- d : Thickness 21mm at 12F
- Radius : 400mmR
