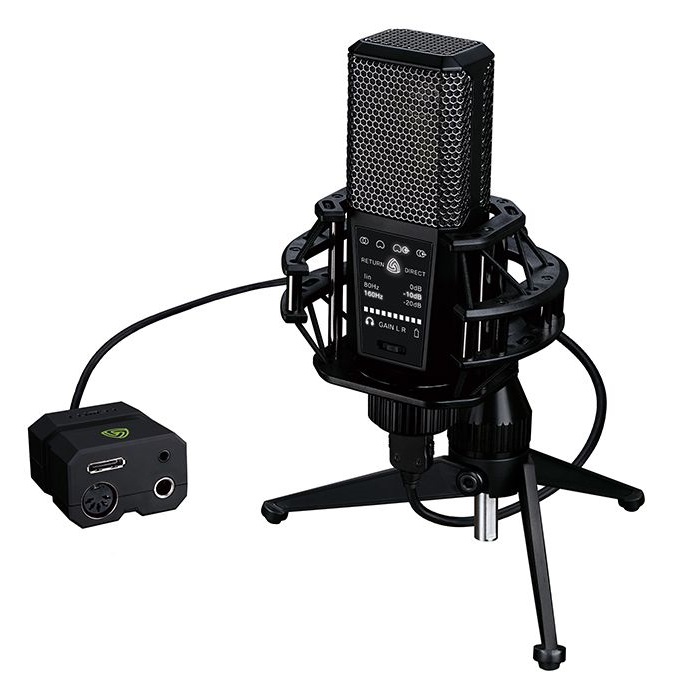

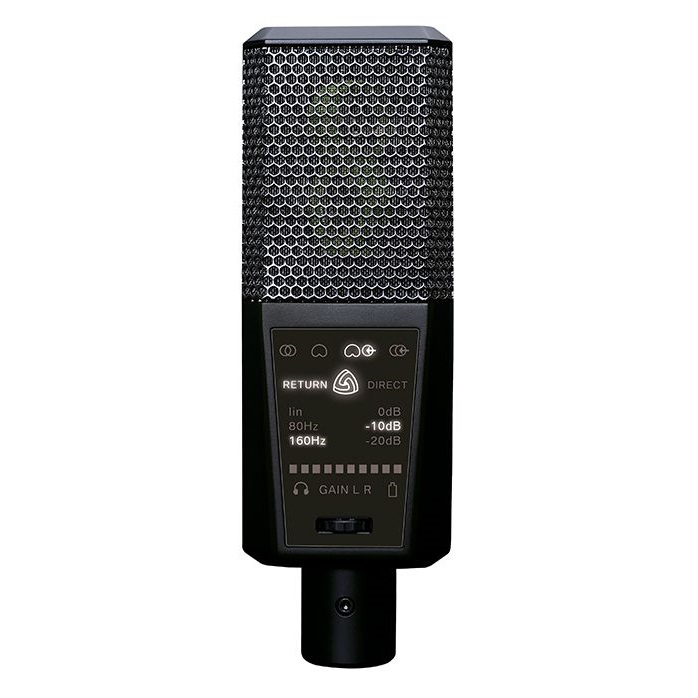

Lewitt DGT 650 Microphone

Description

The Lewitt DGT 650 Microphone is a stereo USB recording solution and interface for PC, Mac and iOS devices in one. It features four recording modes starting with the XY Stereo Mode for live stereo recording and field recording. Cardioid Mode for vocal recordings and similar applications. In Singer/Songwriter Mode an acoustic and a line source � like vocals and a guitar � are recorded on separate tracks. The Stereo Line-In Mode is for capturing a stereo line signal like a synthesizer or mixing console stereo output. Furthermore MIDI is available also in all four modes.

24 bit / 96 kHz, 110 dB dynamic range, two step pre-attenuation and high pass filter lay the foundations for best-possible recordings. Asynchronous USB transfer, support of OS X Core Audio and ASIO for Windows, the option to crossfade between zero latency direct and minimum latency tape return monitoring and the built-in high impedance amplifier for studio headphones, � all those features in one single device opens up a wide range of possible applications: recording vocals, instruments and live acts wherever you go, stereo miking, field recording, Podcasts and as your go-to YouTube microphone, just to name a view.

In short: the DGT 650 is more like your mobile recording studio than just the best USB microphone.

Lewitt DGT 650 Microphone Features:

• All-in-one stereo recording solution and interface for PC, Mac and iOS devices � no camera connection kit required!
• iOS, OS X and Windows support
• Asynchronus USB transfer: precise internal clock handles the samplerate timing to avoid jitter and ensures bit and pitch accurate audio capture and reproduction
• XY capsule arrangement for phase coherent stereo recordings
• OS X Core Audio and dedicated ASIO driver for Windows � the only way to ensure minimal tape return latency
• Line-in and MIDI-input XY-Stereo Mode for live concerts, background vocals etc
• Cardioid Mode for effective rear and side rejection
• Singer/Songwriter Mode for simultaneous recording of acoustic and line sources
• Stereo Line-In Mode, connect a synthesizer or mixing console output and record it directly to your device
• MIDI available in all four modes
• 24 bit / 96 kHz, 110 dB dynamic range
• Two step switchable pre-attenuation and high pass filter
• 950 mAh battery for 3h+ recording time on iOS devices
• Built-in amp for high impedance studio headphones
• Powerful headphone amp: 180 mW @ 32 ohm, THD+N < 0.5 %
• Crossfade between zero latency direct and minimal latency tape return monitoring
• ASIO driver for minimal tape return latency
• Push wheel to change the DGT 650 settings on the microphone Control Center to change the settings right from your computer
• Illuminated user interface for quick and easy handling in dark environments
• Streamlined cable handling due to the Breakout Box

Top applications

• Record vocals, instruments and live acts wherever you go
• Stereo miking
• Field recording
• Podcasts and as YouTube microphone

Specifications:

• Input impedance > 1 Meg ohm
• Full scale input voltage � 8 dBu
• Input dynamic range � 110 dB (A)
• Frequency response � 20 to 20.000 Hz
• Headphone output power � 160 mW at 16 ohm, THD+N < 0,5 %
• 180 mW at 32 ohm, THD+N < 0,5 %
• Frequency response � 30 to 20.000 Hz
• Headphone volume control � -60 dB to 0 dB
• MIDI � analogue MIDI connector
• Line in � 6,3 mm, inch TRS phone jack (2 channels)
• Headphones � 3,5 mm phone jack
• DGT 50 Li � Apple Lightning to 18-pin lockable hi-speed connector
• DGT 50 USB � USB to 18-pin lockable hi-speed connector
• DGT 50 Tr � 18-pin to 18-pin
• Mic enclosure � Zinc die cast
• Mic dimensions � 138 x 52 x 36 mm / 5,43 x 2,04 x 1,42 inch
• Mic net weight � 310 g
• Breakout box dimensions � 54 x 50 x 32 mm / 2,13 x 1,96 x 1,26 inch
