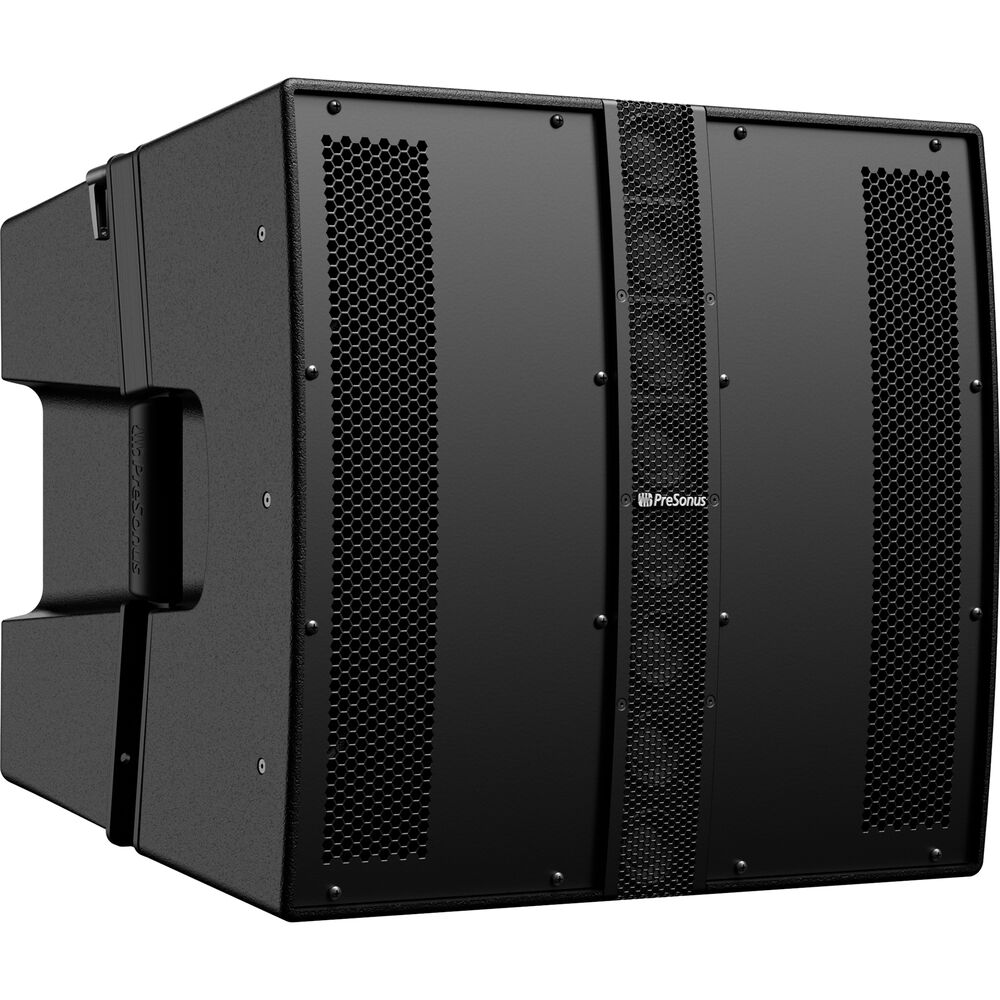

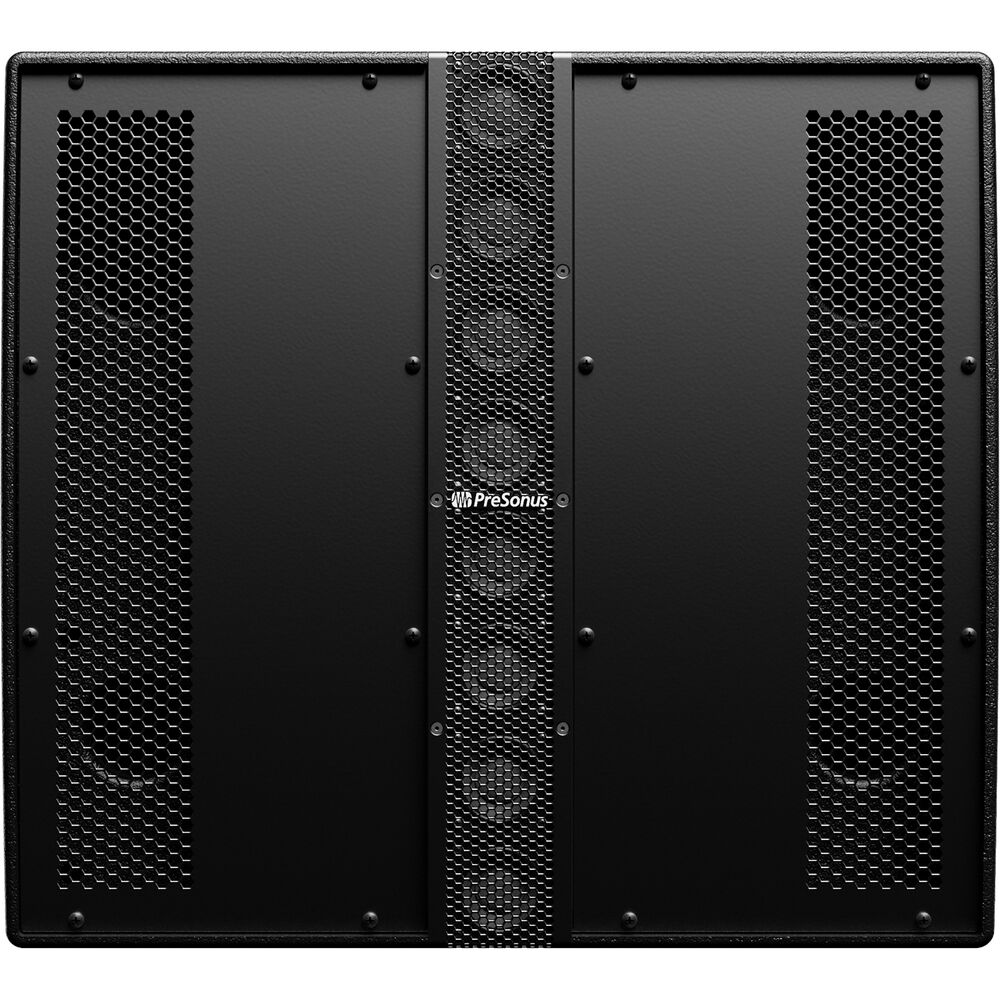

Building upon the success of the original CDL12, the PreSonus CDL12P
is a constant directivity loudspeaker well suited for fixed
installations and mobile sound reinforcement for live bands, DJs, clubs,
event halls, bars, speaking engagements, and more. By combining the
best attributes of point source and line array technologies, the CDL12P
offers consistent, coherent sound with focused pattern control and
consistent SPL throughout the frequency response range.
The polypropylene enclosure houses a 2000W Class-D amplifier that powers
the single 12" (1000W) woofer and eight 2" hi-mid frequency drivers
(1000W), which combine to offer a frequency range of 48 Hz to 18 kHz (�3
dB) with a maximum SPL of 130 dB. With a low 420 Hz crossover, the
CDL12P minimizes comb filtering between the high-mid drivers and the 12"
driver.

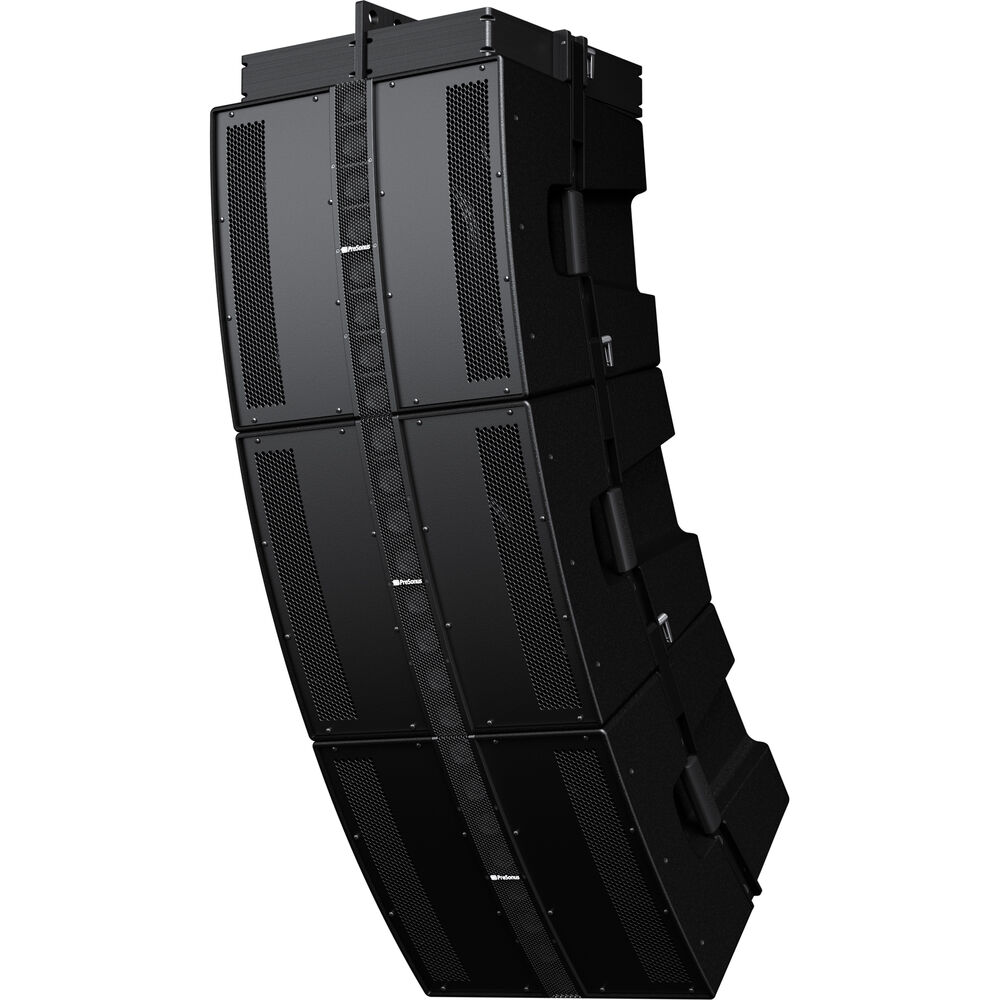

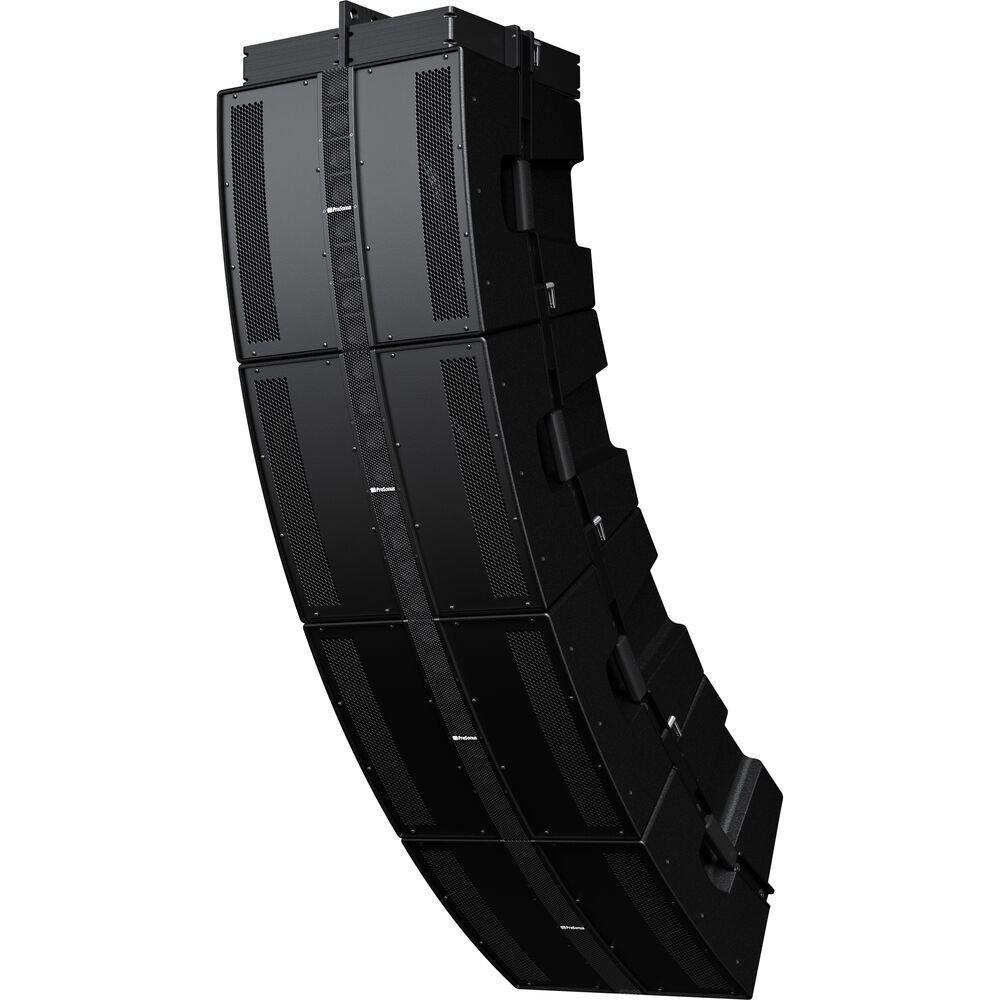

Rigging CDL12P enclosures is made easier, thanks to the integrated
pin-loaded rigging hardware. A dual-angle pole mount provides support
for up to two enclosures, while up to six enclosures can be flown
offering a truly symmetric 120 x 90� design. Up to six enclosures can be
flown with one or two of the optional CDL18 subwoofers for extended
low-frequency response.
Onboard DSP presets help facilitate simplified array configurations,
while providing compression, limiting, 800 ms of delay, and 8-band EQ
with individually selectable filters (HP, LP, BP, Notch, High-Shelf,
Low-Shelf, and All Pass). The PreSonus CDL12P ships with a powerCON
power cord.
