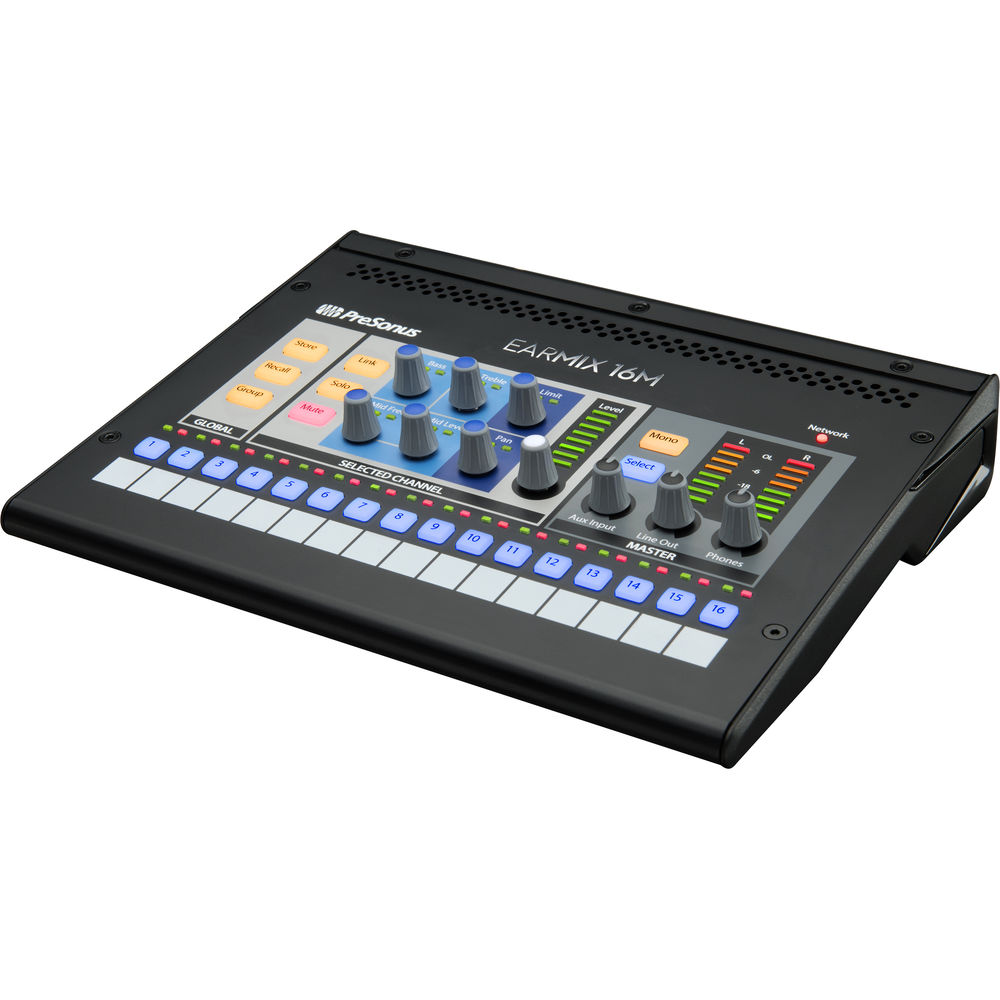

The Presonus EarMix 16M
is a 16-channel personal monitor mixer that is compatible with all
StudioLive Series III mixers, as well as with other AVB-enabled systems.
The EarMix 16M mixes 16 mono channels via AVB networking and provides
stereo channel linking and channel grouping along with three-band EQ and
limiting for each channel as well as the main mix. For outputs, the
unit offers a pair of balanced 1/4" TRS connectors as well as a 1/4"
headphone output with a loud, clear headphone amplifier capable of
driving low impedance devices such as high-quality in-ear monitors. The
two AVB jacks enable daisy-chaining up to 24 EarMix units with a
StudioLive Series III mixer. The EarMix 16M can be powered by the
included external power supply or over Ethernet (PoE) from a compatible
switch.
PreSonus EarMix 16M - 16x2 AVB-Networked Personal Monitor Mixer Key Features
- 24-Bit / 48 kHz Operation
- Loud and Clear Headphone Amplifier
- Drives Low-Impedance, In-Ear Monitors
- Limiter and 3-Band EQ on All Channels
- Stereo Channel Linking and Grouping
- Support for PoE Power
- Two AVB Ethernet Ports
- Eight-Segment Stereo Output Meter
- 1/8" Stereo Aux Input
- Includes External Power Supply

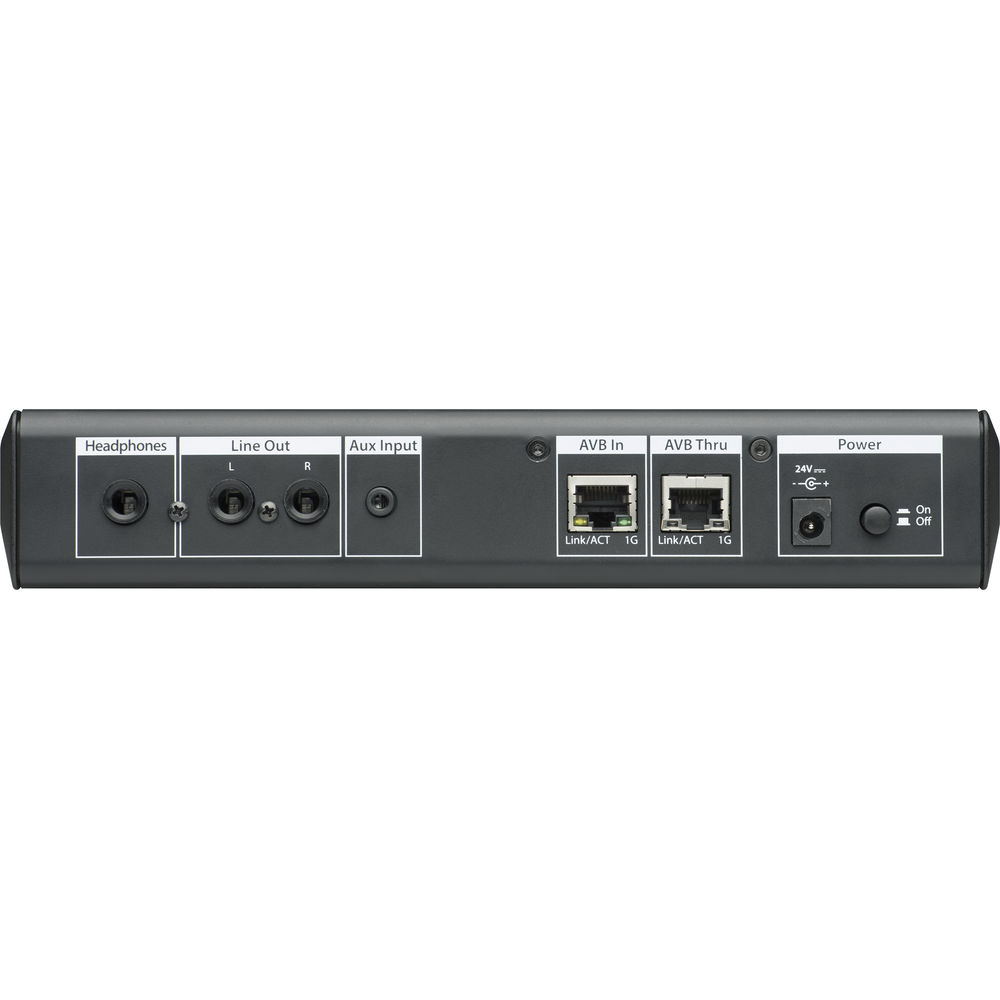

- Analog Input/Output
- 1/8" stereo aux input
- 2 x balanced 1/4" TRS line outputs
- 1/4" TRS stereo headphone output with loud, clear headphone amp that can drive low-impedance in-ear monitors

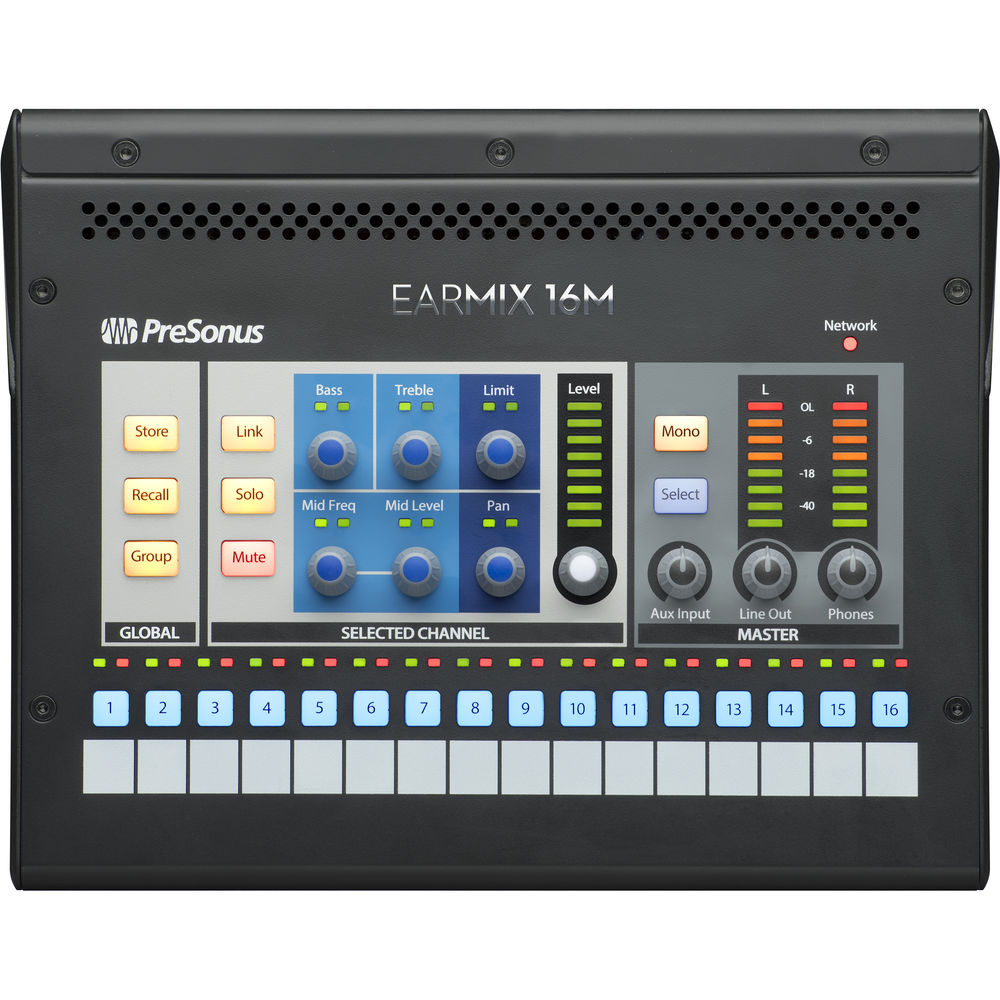

- Meters, Controls, and Processing
- 3-band EQ with sweepable mid frequency on all channels and main mix
- Limiter on all channels and main mix
- Stereo channel linking
- Channel grouping
- Solo and mute
- Mix scene Store and Recall; store up to 16 mix scenes locally
- 16 x signal present and clip LEDs (one for each input)
- 8-segment stereo output meter
- Channel Level rotary control with 8-segment level indicator
- Aux input level control
- Independent monitor (line out) and phones level controls
- Routing setup from StudioLive Series III consoles and UC Surface
- Digital
- 16 x mono channels of input via AVB networking
- 2 x AVB Ethernet ports
- 24-bit, up to 48 kHz operation
- Power
- External 24 VDC power supply (included)
- Support for PoE power
- Physical

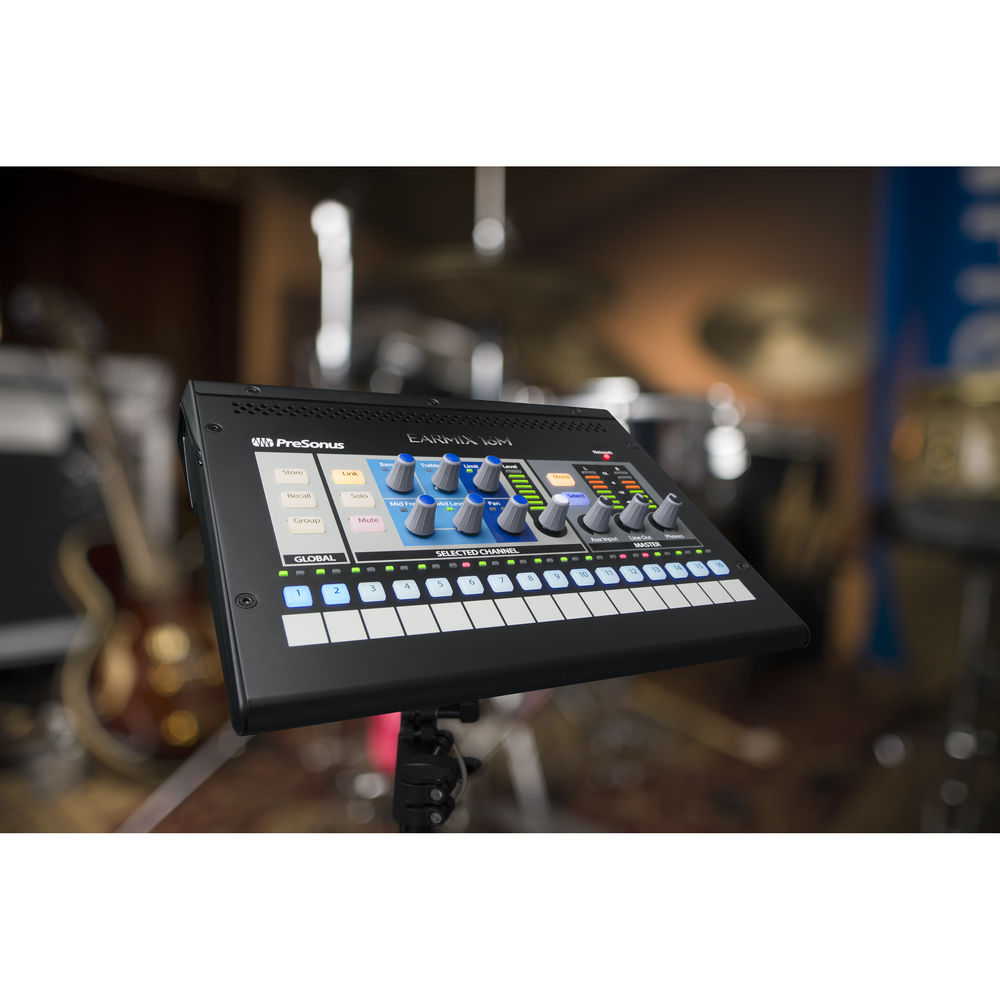

- Optional mic stand mount (sold separately)
