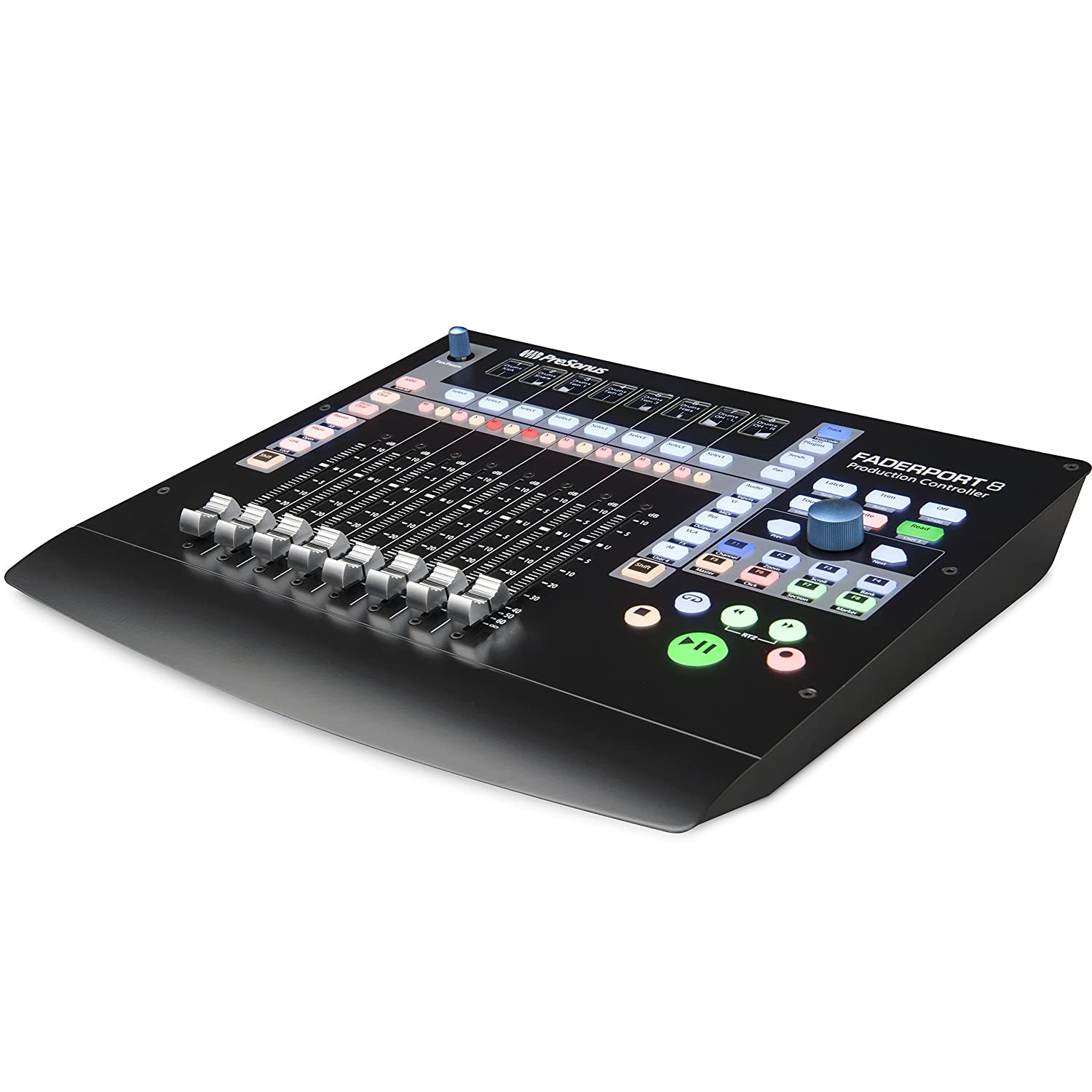

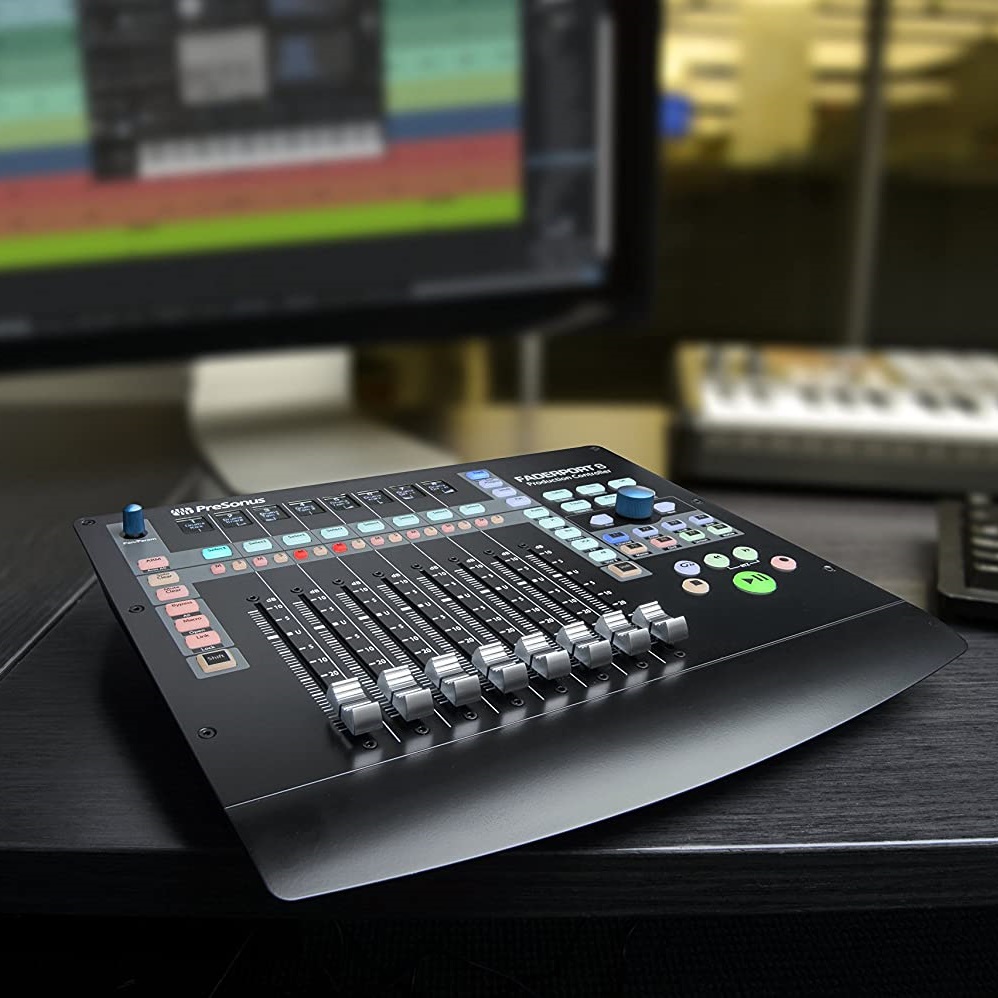

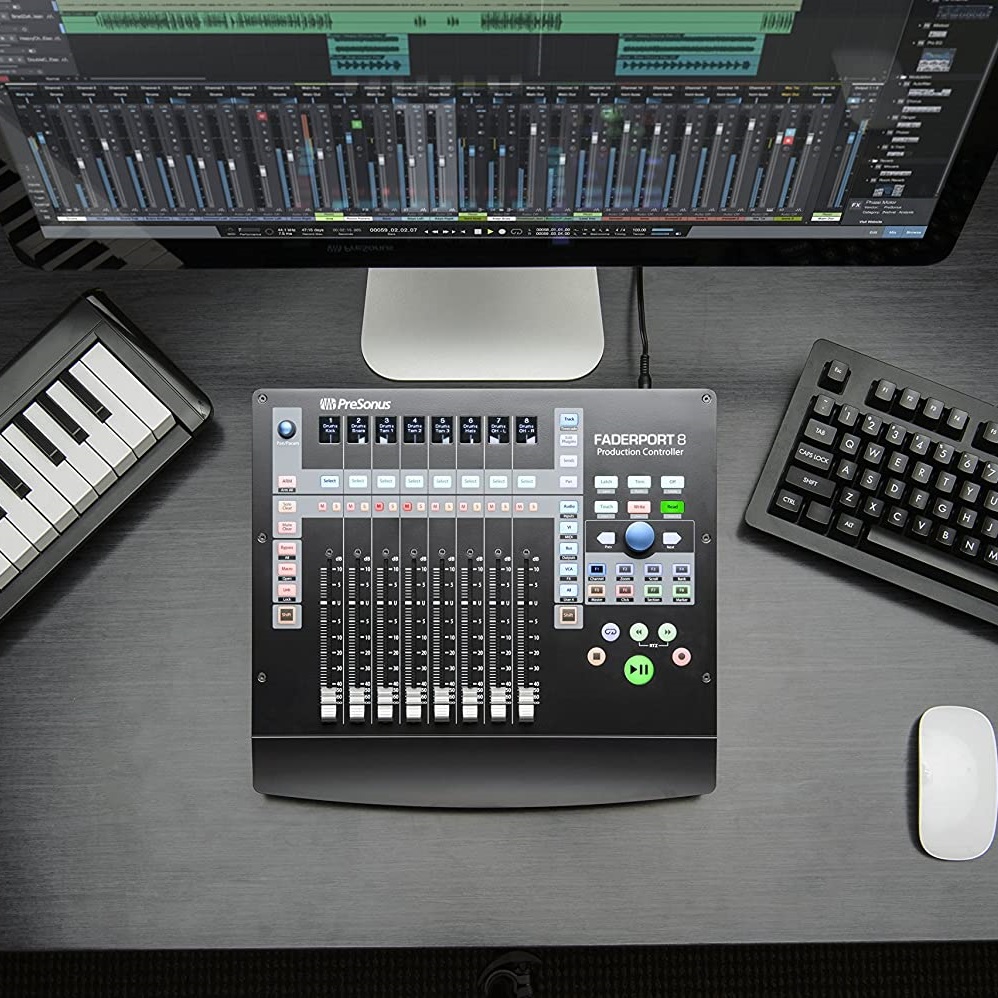

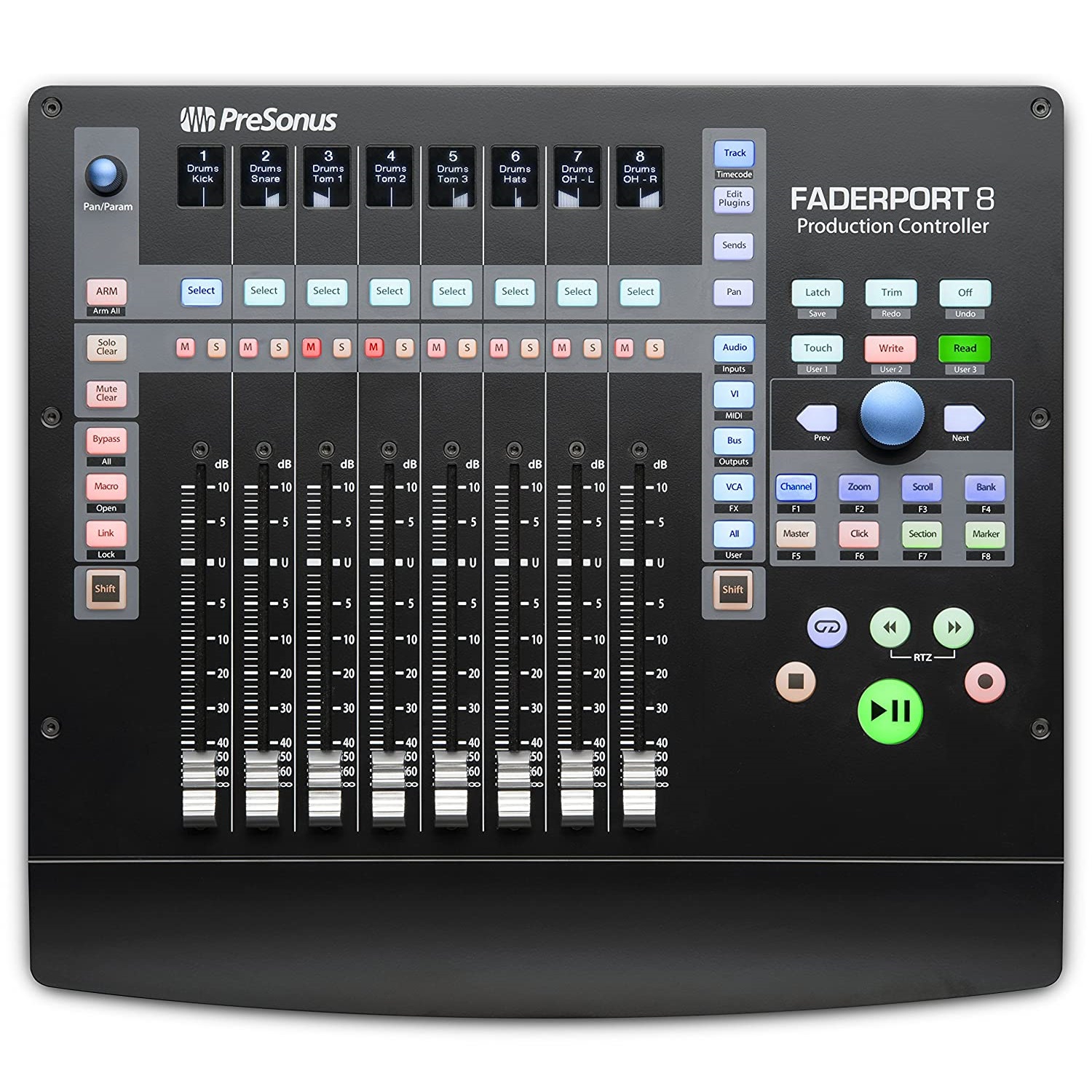

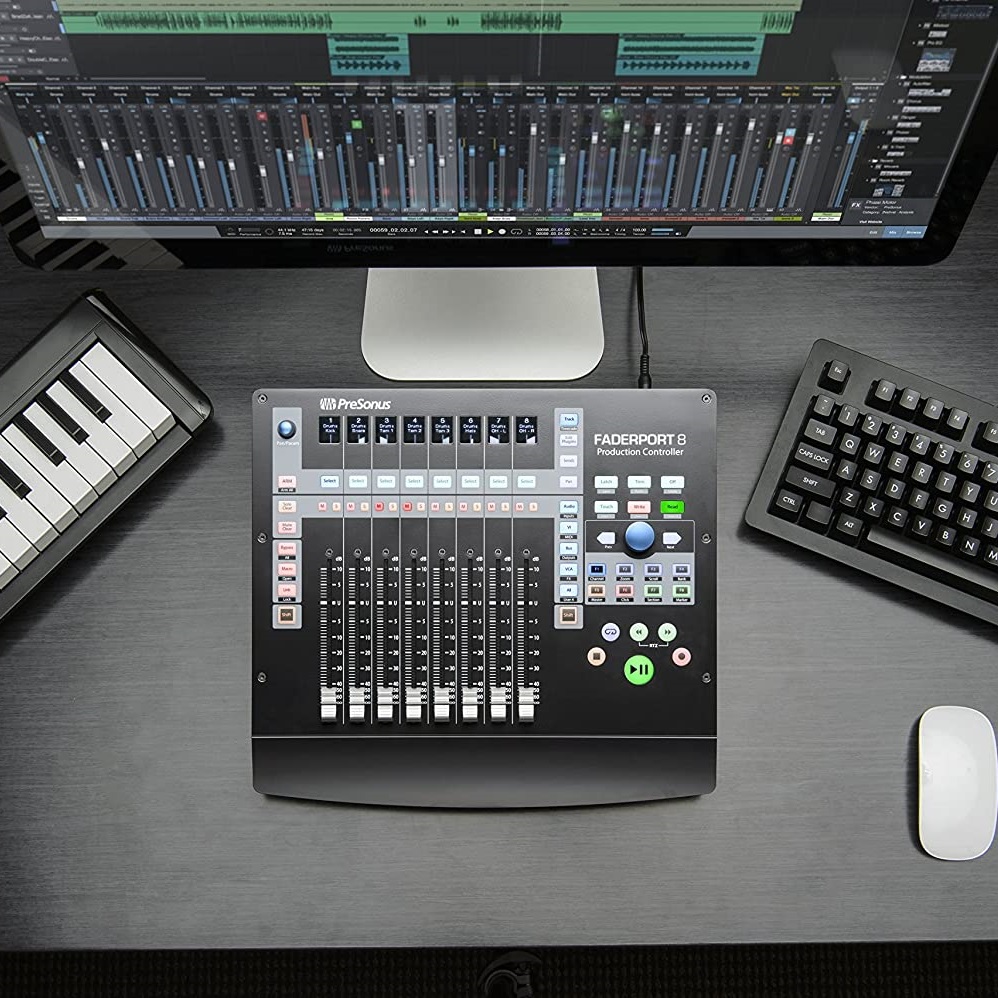

Presonus Faderport 8 8-Channel Mix Production Controller

Description

Don�t kill that mouse�give it a companion
Although a keyboard and mouse are tried-and-true DAW-control devices, they�re far more effective when used in tandem with the FaderPort� 8�s precise tactile control over mix and automation functions. With 8 touch-sensitive, motorized, 100 mm faders and 57 buttons covering 78 different functions, you can quickly zoom in on audio files for editing, adjust your click-track tempo with a simple tap, modify plug-in parameters, manage aux mixes�and, of course, control track levels with the touch of a finger.

Work faster and smarter
Rather than forcing you to revise your mixing method, the FaderPort 8 augments the way you currently mix. You still use your faithful keyboard and mouse for things they do well, and the FaderPort 8 handles the features you want to get your fingers on, allowing you to customize your workflow. Large, illuminated buttons make finding the function you need quick and easy. Eight high-definition digital scribble strips provide visual feedback. And if you select a track with your mouse, the FaderPort 8 will follow your selection, giving you yet another way to get to the function you need, right when you need it.

One-button access to key functions
The FaderPort 8's unique Session Navigator provides easy access to eight mission-critical functions for maximum flexibility. Dedicated buttons are provided to instantly arm all tracks for recording; control mutes and Solo Clear; view only the tracks, buses, and VCAs you want so see; and more. You�re not limited to preset controls, either: Four programmable User buttons let you quickly and easily access your favorite functions.

Universal compatibility and tight Studio One� integration
FaderPort 8�s streamlined workflow and support for the Mackie Control and HUI protocols make it fast and easy to control virtually any DAW. No driver installation is necessary; just plug the control surface into a USB port and take command of your mix and plug-ins. But the FaderPort 8 is downright magical when used with PreSonus Studio One. (Studio One Artist is included.)

An amazingly fast, efficient studio workflow awaits you!
With the compact, easy-to-use FaderPort 8, you�ll enjoy the fastest, most efficient workflow you�ve ever experienced.

 Presonus Faderport 8 8-Channel Mix Production Controller Features:

• 8 touch-sensitive, 100 mm long-throw, motorized faders
• 8 high-definition Scribble Strip displays
• Complete recording-transport controls: Play, Stop, Fast Forward, Rewind, Record, Loop
• Drop Marker, Next/Prev Marker, Next / Prev Event
• General session controls: Undo/Redo, Arm All, Solo/Mute Clear, Track Management, Click On/Off with tap tempo
• Session Navigator provides quick control over track scrolling, channel banking, timeline scrolling, and much more
• Channel Controls: Level, Pan, Solo, Mute, Rec Arm
• Automation Controls: Touch, Latch, Trim, Write, Read, Off
• Optional Fader functionality: plug-in edit, bus sends, pan
• macOS� / Windows� compatible with native Studio One� support and HUI and Mackie Control Universal emulation*
• Footswitch input for hands-free start/stop
• USB 2.0 connectivity

• Input / Output: 1 USB 2.0 port, 1 Footswitch jack for hands-free stop/start

• 8 100 mm long-throw, touch-sensitive, motorized faders
• Dual-servo motorized drive belt system for fast and quiet operation
• Ultra-smooth feel and lightning fast
• Heavy-duty construction
• Resolution: 10-bit, 1,024 steps

• General Controls: Undo/Redo, Arm All, Solo/Mute Clear, Timecode, Click On/Off, 4 programmable User buttons, 8 Function buttons, Macro, Parameter Link, Bypass Plug-ins
• Channel Controls: Level, Pan, Solo, Mute, Select, Rec Arm
• Automation Controls: Touch, Latch, Trim, Write, Read, Off
• Optional Fader Functionality: Plug-in Edit, Bus Sends, Pan
• Window View: Mix, Project, Transport, Undo
• Transport: Play, Stop, Fast Forward, Rewind, Record, Loop, Return to Zero (Functionality varies slightly depending on the DAW.)
• Navigation: Track Scroll, Channel Banking, Timeline Scroll, Horizontal Zoom, Vertical Zoom, Drop Marker, Next/Prev Marker, Next / Prev Event, Nudge
• Console Management: Show/Hide: Audio Track, Inputs, MIDI Tracks, Buses, Outputs, VCA, FX; Show All
• Displays: 8 high-definition digital scribble strip displays, timecode display, channel meters

• 12 VDC, 2A external power supply

• Dimensions (H X D X W): 2.25" (57.2 mm) X 11.85" (301 mm) X 13.15" (334 mm)
• Weight: 5 lbs. (2.3 kg)

• Mac�: macOS� 10.8.5 or higher, Intel� Core� 2 Duo processor (Intel Core i3 or better recommended)
• Windows�: Windows 10 x64/x86, Windows 8.1 x64/x86, Windows 7 x64/x86 SP1 + platform update, Intel Core 2 Duo or AMD� Athlon� X2 processor (Intel Core i3 or better recommended)

• FaderPort 8 firmware 1.0.1 or later (requires Universal Control v.1.8.3 or later)
• USB 2.0 port
• Internet connection required for driver and bundled software installation
• Universal Control v.1.8.3 (for firmware updates)
• PreSonus FaderPort 8 has been tested and approved to work with the following software:
• Native Mode: PreSonus� Studio One� 3.3.2 or later
• HUI Emulation: Supported by Pro Tools
• Mackie Universal Control Emulation: Supported by Logic, Cubase, Ableton, Nuendo, Bitwig, Reaper, Reason, and more
