Presonus Faderport V2 Innovative DAW Controller Studio Monitor Controller

Description

Advanced, Innovative DAW Control FaderPort : USB Production Controller

Don�t kill that mouse�give it a companion.
Although a keyboard and mouse are tried-and-true DAW-control devices, they�re far more effective when used in tandem with the FaderPort��s precise tactile control over mix and automation functions. A superior solution for anyone who mixes in the box, the FaderPort provides a 100 mm touch-sensitive, motorized fader for writing fades and automation in real-time and 24 buttons covering 40 different functions, all in a compact chassis that easily sits on any desk. Quickly zoom in on audio files for editing. Control track levels with the touch of a finger. With the FaderPort, you�ll enjoy the fastest, most efficient workflow you�ve ever experienced.

Work smarter.
We've incorporated elements from the award-winning FaderPort 8 into our new and improved FaderPort. Rather than forcing you to revise your mixing method, the FaderPort augments the way you currently mix. You still use your faithful keyboard and mouse for things they do well, and the FaderPort handles what you really want to get your fingers on: your mix. This is DAW control the way you always hoped it could be

One-button access to key functions.
The FaderPort's unique Session Navigator provides easy access to eight mission-critical functions for maximum flexibility. Use the large encoder button and companion buttons to edit and mix with greater efficiency and speed. Scroll through your timeline, using the encoder, or work measure by measure with the arrow buttons; zoom in and out on the timeline with the encoder and make your tracks larger or smaller with the arrow buttons; navigate and drop markers; and maintain constant control of your main level. Once you start using the Session Navigator, you�ll wonder how you mixed without it.

One-button access to key functions.
The FaderPort's unique Session Navigator provides easy access to eight mission-critical functions for maximum flexibility. Use the large encoder button and companion buttons to edit and mix with greater efficiency and speed. Scroll through your timeline, using the encoder, or work measure by measure with the arrow buttons; zoom in and out on the timeline with the encoder and make your tracks larger or smaller with the arrow buttons; navigate and drop markers; and maintain constant control of your main level. Once you start using the Session Navigator, you�ll wonder how you mixed without it.

An amazingly fast, efficient studio workflow awaits you
With the compact, easy-to-use FaderPort, you�ll enjoy the fastest, most efficient workflow and the most session control you�ve ever experienced. But don�t just take our word for it; visit your favorite PreSonus dealer and try the FaderPort for yourself!

Presonus Faderport V2 Innovative DAW Controller Studio Monitor Controller Features :

• Single touch-sensitive, 100 mm long-throw, motorized fader
• Large, 360� button encoder
• Complete recording-transport controls: Play, Stop, Fast Forward, Rewind, Record, Loop
• Drop Marker, Next/Prev Marker, Next/Prev Event
• General session controls: Undo/Redo, Arm All, Solo/Mute Clear, Click On/Off
• Session Navigator provides quick control over Track Scrolling, Timeline Scrolling, and much more
• Channel Controls: Level, Pan, Solo, Mute, Rec Arm
• Automation Controls: Touch, Latch, Trim, Write, Read, Off
• Mac / Windows compatible with native Studio One support and HUI and Mackie Control Universal emulation
• Footswitch input for hands-free start/stop (footswitch not included)
• USB 2.0 connectivity

Computer system requirements:

Below are the minimum computer-system requirements for FaderPort:

Mac

• macOS 10.8.5 64-bit or higher
• Intel Core 2 Duo processor (Intel Core i3 or better recommended)
• Windows
• Windows 7 x64/x86 SP1 + platform update, Windows 8.1 x64/x86, or Windows 10 x64/x86
• Intel Core 2 Duo or AMD Athlon X2 processor (Intel Core i3 or better recommended)

• The most recent FaderPort firmware
• USB 2.0 port
• Internet connection required for driver and bundled software installation
• Universal Control 2.8 or later (for firmware updates)
• PreSonus FaderPort has been tested and approved to work with the following software:
• Native Mode
• PreSonus Studio One 3.5.6 with extension*** or Studio One 4.0.1 or later
• HUI Emulation
• Supported by Pro Tools
• Mackie Universal Control Emulation
• Supported by Logic, Cubase, Nuendo, and Ableton

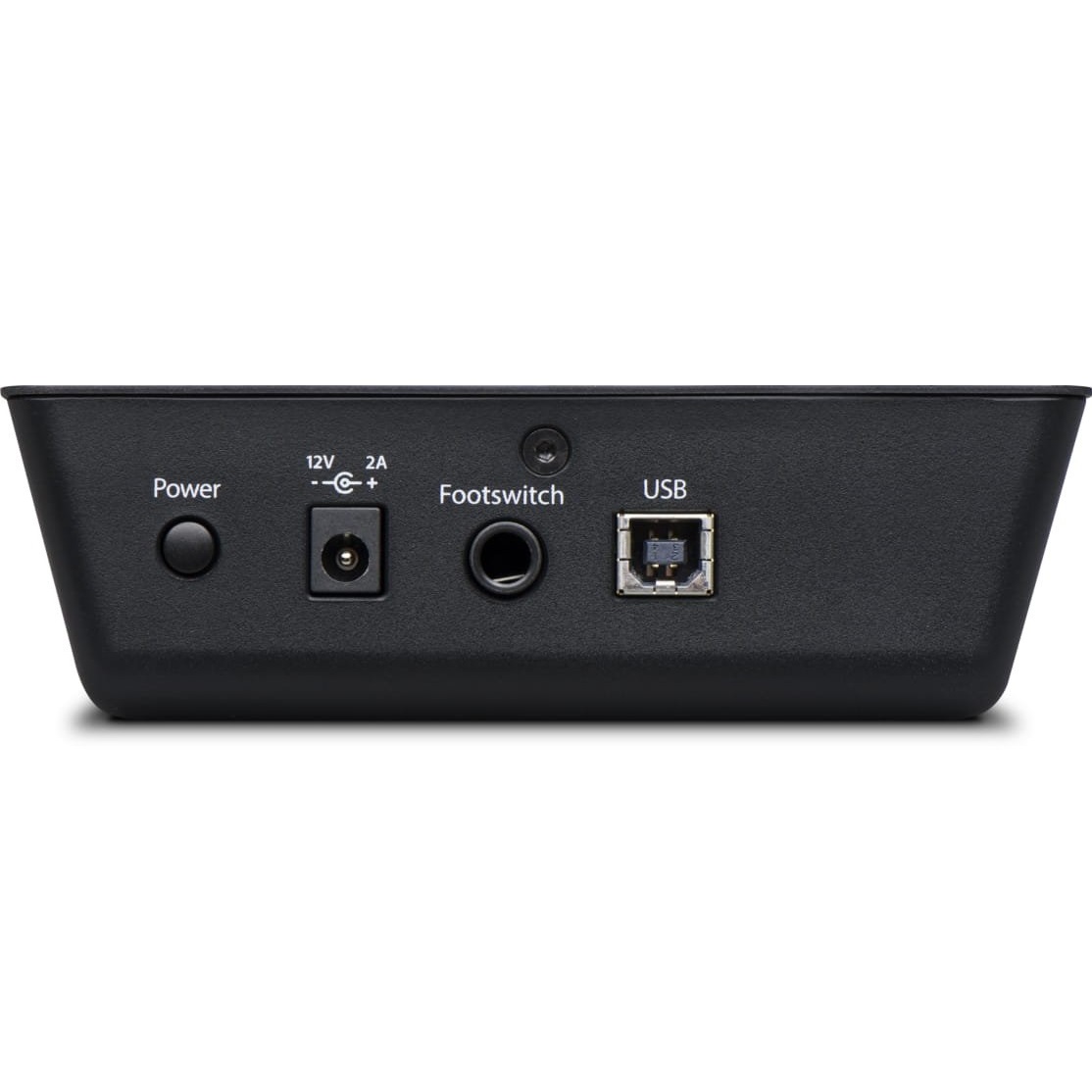

• Input / Output
• 1 USB 2.0 port
• 1 Footswitch jack for hands-free stop/start
• Faders
• 1 100 mm long-throw, touch-sensitive, motorized fader
• Dual-servo motorized drive belt system for fast and quiet operation
• Ultra-smooth feel and lightning fast
• Heavy-duty construction
• Resolution : 10-bit, 1,024 steps
• Buttons and Knobs

General Controls : 360� button encoder, Undo/Redo, Arm All, Solo/Mute Clear, Click On/Off, 4 Function buttons, Parameter Link, Bypass Plug-ins
Channel Controls : Level, Pan, Solo, Mute, Rec Arm
Automation Controls : Touch, Latch, Trim, Write, Read, Off

Transport : Play, Stop, Fast Forward, Rewind, Record, Loop, Return to Zero (Functionality varies slightly, depending on the DAW.)
Navigation : Track Scroll, Timeline Scroll, Horizontal Zoom, Vertical Zoom, Drop Marker, Pre/Next Marker, Prev/Next Event, Scrub, Nudge
Power

• Motorized fader requires 12 VDC, 1.2A external power supply (factory configured, included)

• Height : 1.8� (45 mm)
• Depth : 5.5� (140 mm)
• Width : 9� (230 mm)
• Weight : 1.5 lb. (0.68 kg)
