Studiomaster Digilive 16 Digital Mixer

Description

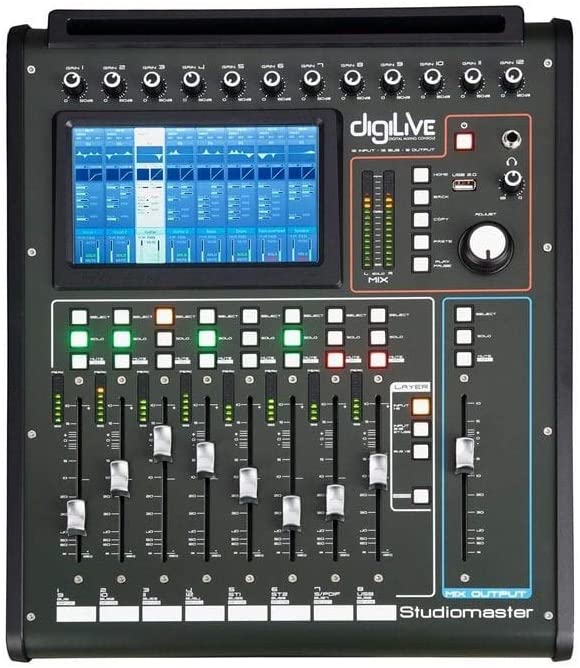

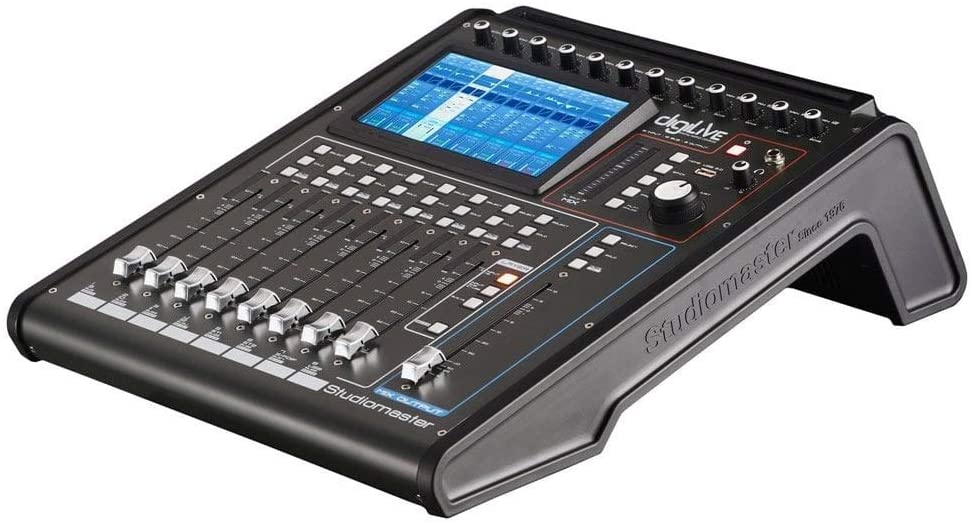

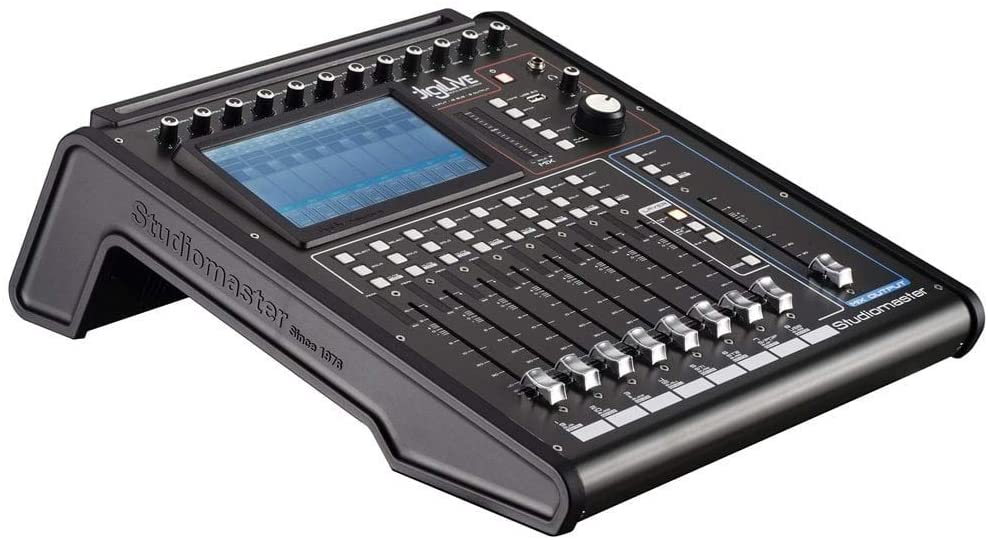

digiLiVE 16 is a 16 input/16 bus/8 output mixer with a control surface integrating a 7-inch Android-driven high-resolution touchscreen and eight motorized 100 mm fader operation alongside fully remote (iOS and Android) tablet operation. AD/DA conversion is 24 bit/192 kHz,

The 16 inputs include 12 mic input channels, and there are up to eight internal effects buses with reverb, delay, 15-band EQ and modulation. The eight �smart� XLR analog outputs are assignable. Outputs also include digital AES/EBU ands SPDIF.

Two USB interfaces are included (front and rear panel) supporting playback and recording, scene storage and system updating. WiFi and Bluetooth wireless connectivity are supported.

Specifications:

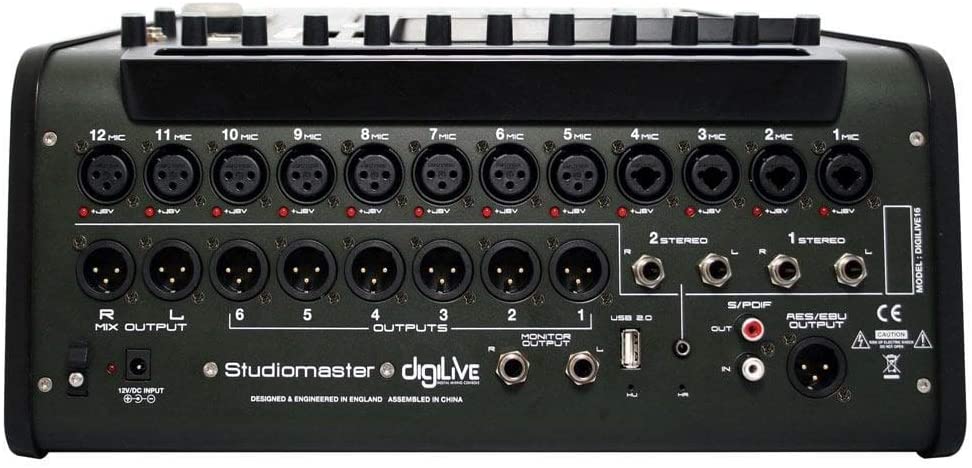

• MIC Inputs: 12x microphone preamps on XLR connectors
• ?LINE Inputs:2x Stereo on dual 1/4" TRS sockets (1x 3.5mm TRS socket in parallel with 1 pair of 1/4")
• MASTER Outputs: 2x balanced XLR (Left/Right)
• SMART Outputs: 6x balanced XLR (Assignable)
• Stereo Monitor: 1x 1/4" TRS socket
• Headphone Out: 1x 1/4" TRS socket
• Internal Busses: 16 assignable
• Effects: up to 8 effects modules - assignable (reverb, modulation, delay, 15 band EQ)
• AES/EBU Output: 1x XLR Connector - Digital Output
• S/PDIF In/Out: 1x RCA/Phono Connector - Digital I/O
• USB Interface: 2x USB Connectors for playback, recording, scene storage
• Network Interface: WIFI
• Bluetooth: External Module
• Screen: 7" HD Touch Screen
• Faders: 9x 100mm Motorized Sliders (8 for channel levels, 1 for master level)
• Operating System: Android
• Sample Frequency: 48kHz
• AD/DA Standard: 192kHz, 24-bit
• DSP Chip: 40-bit floating point SHARC processor
• WIFI control: iPad app for remote control of all functions
• Power: 12vDC power brick - 90-260vAC 50/60Hz Switch mode power supply
• Dimensions (WxDxH): 350mm x 380mm x 150mm
